저장소 폴드형이 20 밀리미터는 6.0 밀리미터 전선 롤 케이지 컨테이너를 관을 답니다
500PCS
MOQ
큰.img.alt
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
기본 정보
원래 장소: 칭다오
브랜드 이름: FIRST
인증: ISO9001
모델 번호: 1100(W)*800(D)*1750(H)MM
하이 라이트:

20 밀리미터 튜브 롤 케이지 컨테이너

,

6.0 밀리미터 와이어 롤 케이지 컨테이너

,

저장소 폴드형 롤 케이지 손수레

결제 및 배송 조건
포장 세부 사항: 패킹 벨트
배달 시간: 20~25 평일
지불 조건: L/C (신용장), 전신환
공급 능력: 2000PCS/month
제품 사양
부하 용량: 500KGS
스케일: 등대세
타입: 기호 논리학적이고 접고 접을 수 있습니다
재료: 강철 Q235의 강철봉, 관, 강철 플레이트
표면 처리: 핫-딥우프트 활성화된 분말 코팅
상품 이름: 명부 컨테이너, 명부 기호논리학 손수레
색: 맞춤화됩니다
특징: 접을 수 있고 폴드형입니다
사용: 창고 저장은, 병참술의, 병참술 수송을 창고에 넣습니다
발언: 주문을 받아서 만들어지는 수락가능한
유효한 부속품: 최고 뚜껑, 피마자, 포크리프트 가이드, 분배자
제품 설명

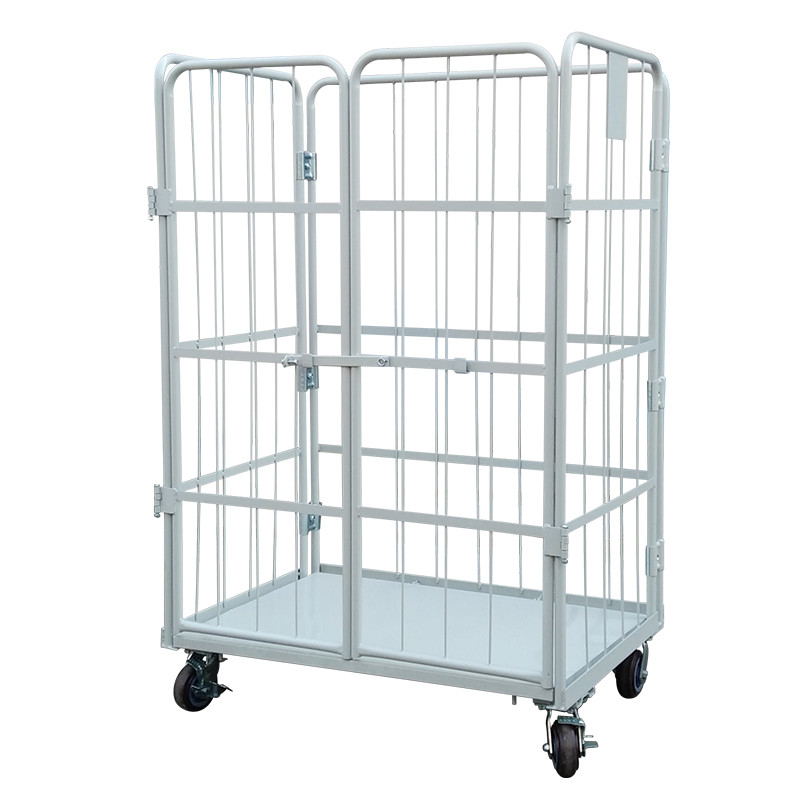

Roll Container used in workshop,warehouse and supermarket

Length × width × height(mm) 800*1000*1600
Loading height(mm) 1600
Mesh size(mm) customized
Castor Φ(mm) customized
Load capacity (kg) 500
Weight(kg) 66
Tube size Φ20*2
Wire guage Φ8&Φ6mm
Finishing zinc plated
Surface treatment high-gloss, galvanized, chrome-plated finish
Chassis chassis made of steel
Rear panel Metal connection elements secure the rear panel to the two side panels.The containers can be collapsed and folded together easily to save space for empty transport or space-saving storage.
Wire shelf The wire shelf can be attached at an interval of 360 mm. Each layer could load 90 kilograms' goods. And chassis is made of steel,with wide supporting rails.

Trolleys can be manufactured in many various shapes and sizes, which can be used for small line or for larger industrial items. As shown above we can create trolleys around whatever specification, being a professional manufacturer, you name it we can make it.

On any trolleys we produce you can add/adjust:

Full/Partial forklift guides

Dependant on your specifications and weight requirements, we can add full or partial fork lift guides. We recommend that on larger trolleys you use full fork lift guides (as shown in the pictures above).

Lifting eyes

If you wish to be able to lift the trolleys using cranes then we recommend having lifting eyes. We can provide load testing to ensure weight requirements are adhered too.



Castors

We ensure that all castors used are load rated to suit your requirements. We can supply various options including swivel, fixed, braked, directional lock as well as numerous options for wheel and tire material.



Galvanised, electroplated or painted to any standard RAL

All of our products are available in any colour you may require, be that a standard RAL ,Panton or mixed to your specifications. We also offer our products galvanised or zinc coated.

With an experienced design team we can ensure that all multi orders or  requests include 3D drawings using Solid Works software.
